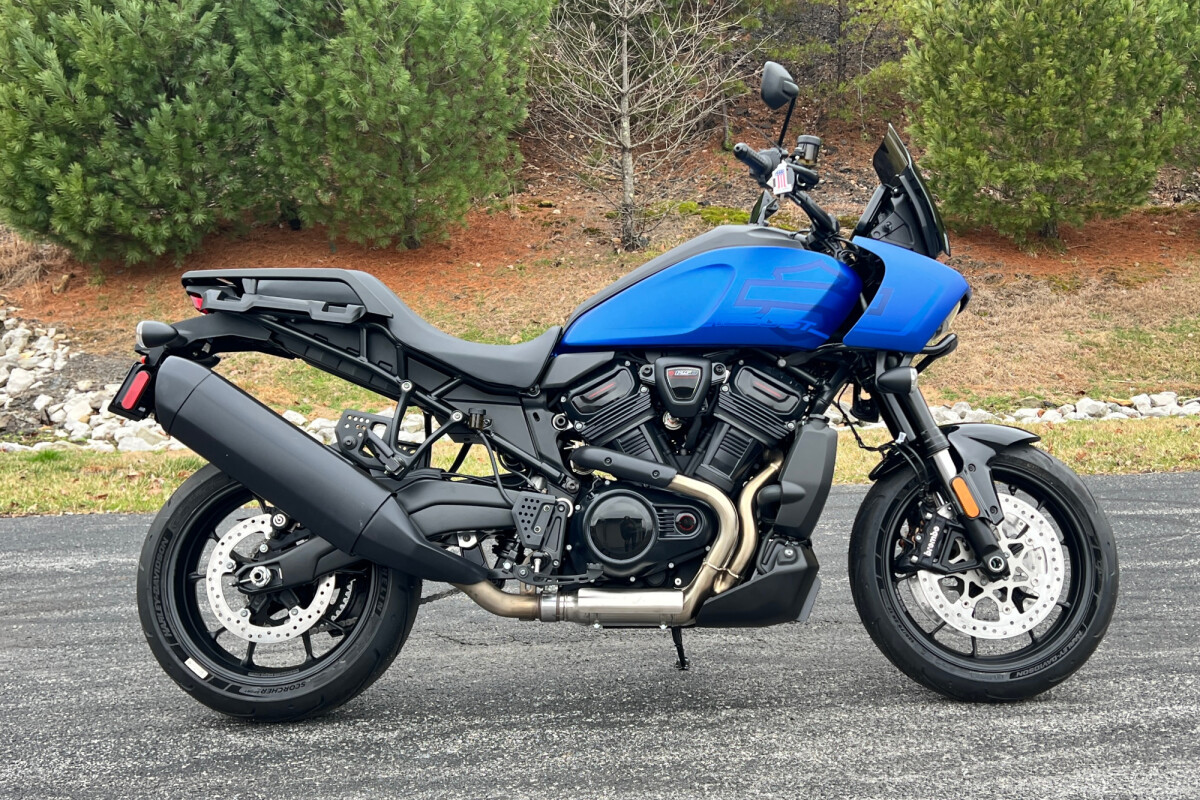

2026 Harley-Davidson® Pan America® 1250 STMove Like You Belong Everywhere The 2026 Pan America 1250 ST is for riders who know the best stories aren't told in a straight line. Featuring a 150 hp Revolution Max® motor, the new clutchless Quick Shifter, Adaptive Ride Height, all-new ride modes, and industry-standard 17” (432 mm) wheels for easy customization, it’s a street-tuned, tech-forward machine that moves like you belong everywhere. Features may include: Blacked-Out Powertrain & Lightweight Exhaust A darker, sleeker look with black finishes and non-highlighted fins, matched to a lighter exhaust that trims weight and sharpens the bike’s street stance. Signature ST Graphics The italicized Bar & Shield and 1250 ST badging flow with a tapered “hockey stick” graphic that ties the fairing and tank together in one clean, continuous line. Low Smoked Windshield A sport-minded windshield that lowers the profile of the Pan America 1250 ST and lets you cut through city air or highway wind with equal ease. Street-Tuned Front End A sporty front fender that hugs the tire and a street-focused wheel design give the ST a sharper, more aggressive look, built for the pavement it was made to own. Welcome to the Asphalt Frontier A clutchless QuickShifter delivers seamless power so you can stay on the throttle and in the moment. With 150 hp on tap and an adjustable suspension tuned for the asphalt, the 2026 Pan America 1250 ST is made for carving, cruising, and chasing the next horizon 150 HP Revolution Max 1250 Motor Liquid-cooled performance with torque from stem to stern and a wide, surging powerband tuned to keep you in command of every mile of asphalt. Street Smarts, Anywhere You Go The Pan America 1250 ST lowers when you need it, thanks to standard Adaptive Ride Height, then resets for full travel as the road opens up. Industry-standard 17” (432 mm) street wheels unlock a world of tire choices, while a slim profile and low seat keep you in control wherever you ride.

Specifications

  • Dimensions
    add remove
    • Length:
      88.2 in
    • Ground clearance:
      6.7 in
    • Rake (steering head):
      25
    • Trail:
      3.7 in
    • Wheelbase:
      62.2 in
    • Tires, front specifications:
      120/70ZR17 58W
    • Tires, rear specifications:
      180/55ZR17 73W
    • Fuel Capacity:
      5.6 gal
    • Oil capacity:
      4.75 qt.
    • Weight, as shipped:
      511 lbs
    • Weight, in running order:
      546 lb
  • Engine
    add remove
    • Engine:
      Revolution® Max 1250
    • Bore:
      4.1 in
    • Stroke:
      2.8 in
    • Displacement:
      76.40 in3
    • Compression ratio:
      13.0:1
    • Fuel system:
      Electronic Sequential Port Fuel Injection (ESPFI)
    • Exhaust:
      2-into-1-into-1; catalyst in header
  • Performance
    add remove
    • Engine torque testing method:
      J1349
    • Engine torque:
      91.5 ft-lb
    • Engine torque (RPM):
      6750
    • Horsepower:
      149 HP / 111 kW @ 8750 rpm
    • Lean angle, right (deg.):
      37
    • Lean angle, left (deg.):
      37
    • Fuel economy testing method:
      Estimated City/Hwy
    • Fuel economy:
      46 mpg (5.1 l/100 km)
  • Powertrain
    add remove
    • Primary drive:
      Gear, 49/89 ratio
    • Gear ratios (overall) 1st:
      13.11
    • Gear ratios (overall) 2nd:
      9.687
    • Gear ratios (overall) 3rd:
      7.509
    • Gear ratios (overall) 4th:
      6.057
    • Gear ratios (overall) 5th:
      5.08
    • Gear Ratios (overall) 6th:
      4.436
  • Chassis
    add remove
    • Front fork:
      47mm inverted fork with electronically adjustable preload and manually adjustable compression and rebound. Aluminum fork triple clamps
    • Rear shocks:
      Linkage-mounted monoshock with automatic electronic preload control and manually adjustable compression & rebound damping
    • Wheels, front type:
      Aluminum cast, satin black
    • Wheels, rear type:
      Aluminum cast, satin black
    • Brakes, type:
      Front: dual rotor, floating, hub mounted; Rear: solid uniform expansion rotor
    • Brakes, caliper type:
      Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper
  • Infotainment
    add remove
    • Type:
      Color TFT w/ Touch
    • Headset specifications (if equipped):
      Bluetooth
    • Voice Recognition Languages: Phone functions only:
      Phone dependent
    • Voice Recognition Languages: Tuner / Media / Navigation:
      Phone dependent
    • Text-to-Speech (TTS) languages:
      Phone dependent
    • Rider / passenger intercom:
      Headset function only
    • Vehicle information screen:
      TPMS, Engine temp, Battery Voltage, Ambient Air Temp
    • USB:
      Charging and Instrument update, USB-C, 5V, 3A
    • Bluetooth:
      Phone/Media Supported
