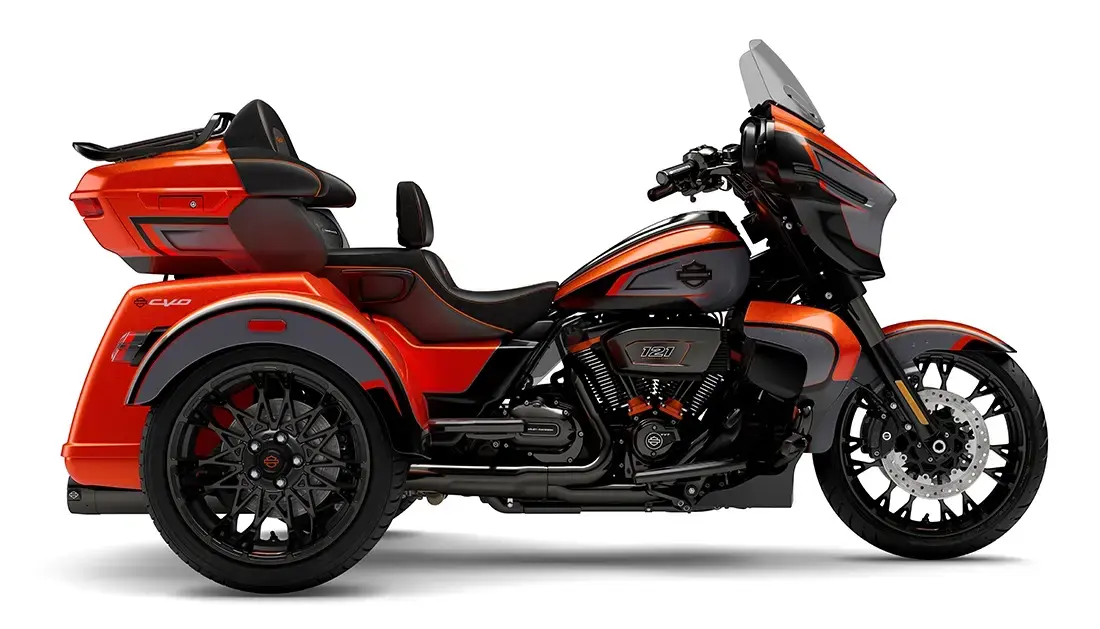

Trust us when we say this is a whole different kind of Trike. At the heart of the CVO Street Glide 3 Limited is the Milwaukee-Eight® VVT 121 motor, paired with a redesigned suspension and a new electric reverse system that make three-wheel touring feel commanding and assured. Heated seats, a trunk, the completely redesigned all-new Grand Tour-Pak®, 12.3” TFT display with Skyline™ OS, premium H-D™ audio, and exclusive CVO colourways elevate this machine into legend territory.

Specifications

  • Dimensions
    add remove
    • Length:
      105.7 in
    • Seat height, unladen:
      28.9 in
    • Rake (steering head):
      26
    • Wheelbase:
      67.7 in
    • Tires, front specifications:
      130/60B19 M/C 61H
    • Tires, rear specifications:
      P215/45R18 83T
    • Oil capacity:
      5 qt.
    • Weight, as shipped:
      1,243 lbs
    • Weight, in running order:
      1283 lb
    • Luggage capacity – volume:
      7.1 cu ft (0.201 m3)
  • Engine
    add remove
    • Engine:
      Milwaukee-Eight® VVT 121
    • Bore:
      4.1 in
    • Stroke:
      4.6 in
    • Displacement:
      120.64 in3
    • Compression ratio:
      11.4:1
    • Fuel system:
      Electronic Sequential Port Fuel Injection (ESPFI)
    • Exhaust:
      2-1-2 dual exhaust
  • Performance
    add remove
    • Engine torque testing method:
      J1349
    • Engine torque:
      137.9 ft-lb
    • Engine torque (RPM):
      3750
    • Horsepower:
      114 HP / 85 kW @ 4500 rpm
    • Fuel economy testing method:
      Estimated City/Hwy
    • Fuel economy:
      39 mpg (6 l/100 km)
  • Powertrain
    add remove
    • Primary drive:
      Belt, 30/70 ratio
    • Gear ratios (overall) 1st:
      10.534
    • Gear ratios (overall) 2nd:
      7.302
    • Gear ratios (overall) 3rd:
      5.423
    • Gear ratios (overall) 4th:
      4.392
    • Gear ratios (overall) 5th:
      3.742
    • Gear Ratios (overall) 6th:
      3
  • Chassis
    add remove
    • Front fork:
      1.9 in dual bending valve
    • Rear shocks:
      Hand-adjustable emulsion rear suspension
    • Wheels, front type:
      Dual Grain, Chrome, 14-spoke
    • Wheels, rear type:
      Dual Grain, Chrome, 14-spoke
    • Brakes, type:
      Dual floating rotors (front), fixed rotor (rear)
    • Brakes, caliper type:
      Front: 32 mm 4 piston fixed, Rear: floating 36 mm piston integrated park brake
  • Infotainment
    add remove
    • Infotainment system:
      Skyline™ OS
    • Type:
      Full Color TFT
    • Watts per channel:
      50
    • Speakers:
      6
    • Speaker size:
      Two 6.5 in fairing speakers, two 6.5 in Tour-pak speakers, and two 6.5 in lower fairing speakers
    • Headset specifications (if equipped):
      Harley-Davidson® Packtalk Edge wireless Bluetooth® headset
    • AM:
      Standard
    • FM:
      Standard
    • SD Card, Flash Drive and MP3 — via USB Connection:
      Supported
    • Languages:
      Arabic, Bahasa (Indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/France), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese
    • Hands-free mobile phone — via Bluetooth:
      Standard
    • Voice Recognition Languages: Phone functions only:
      Phone dependent
    • Voice Recognition Languages: Tuner / Media / Navigation:
      Danish, English (UK/USA default), French (Canada/France), German, Italian, Spanish (Mexico/Spain) & Swedish
    • Text-to-Speech (TTS) languages:
      Same as Languages list
    • Vehicle information screen:
      Standard
    • USB:
      USB-C/MTP/Smartphone will work with any phone which has proper adapters to the connection located in the inner fairing storage
    • Bluetooth:
      Phone/Media Player, Headset
